E078

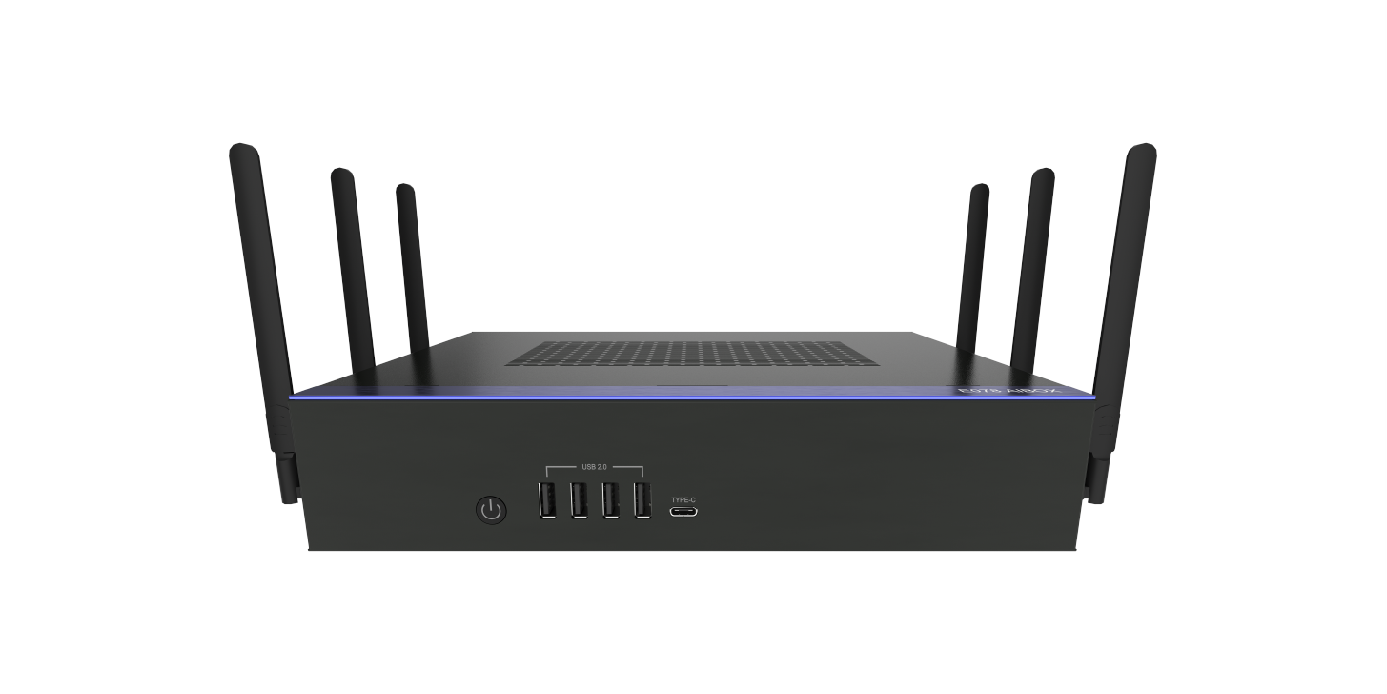

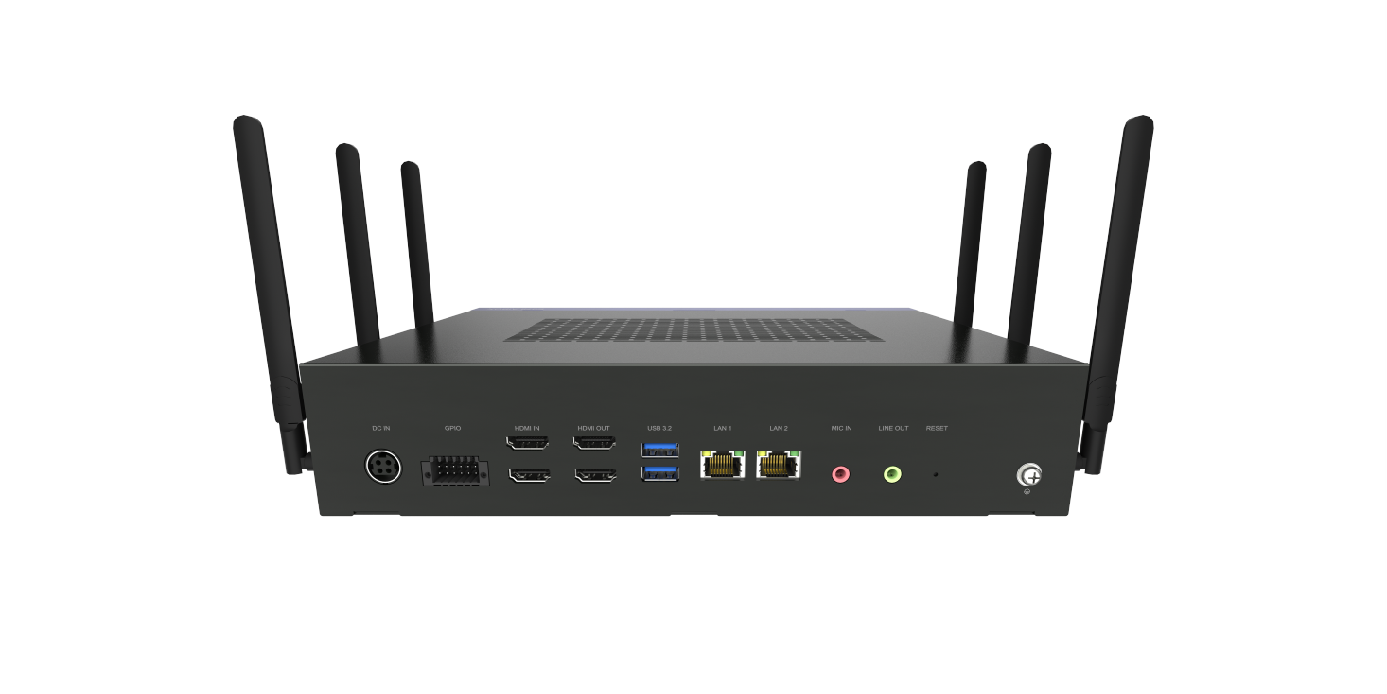

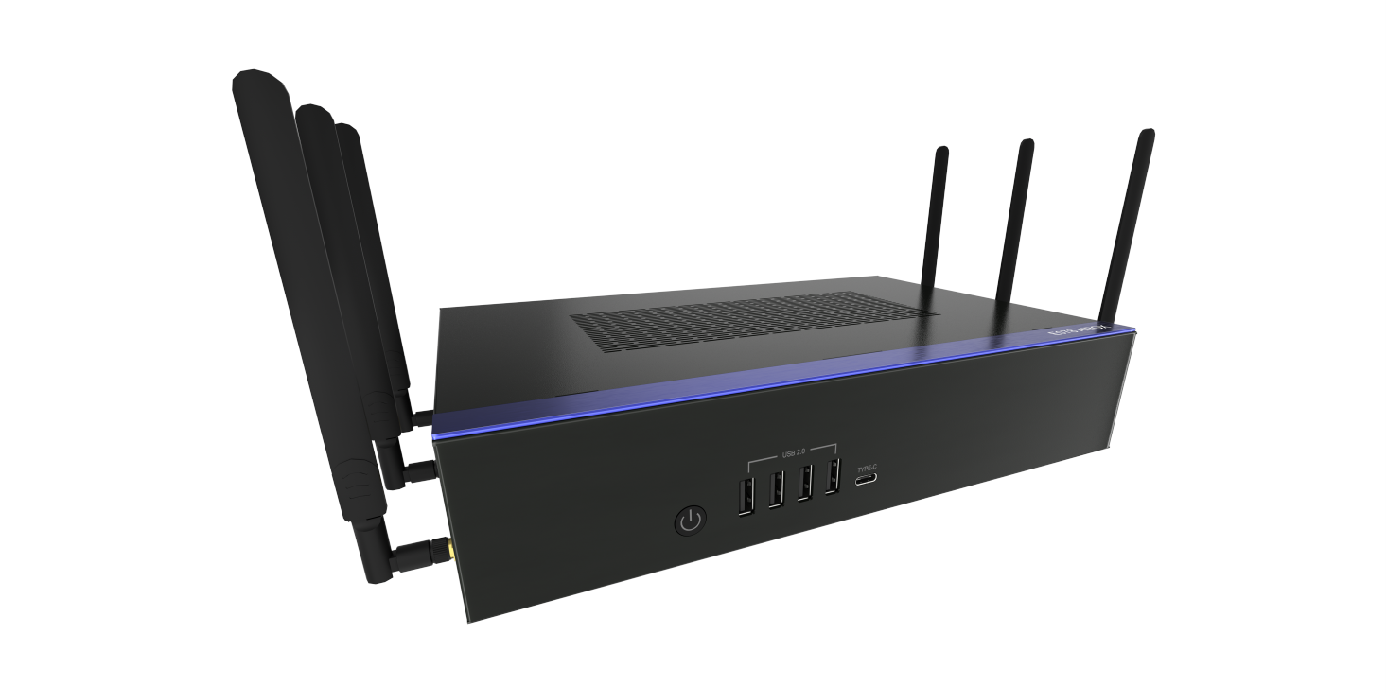

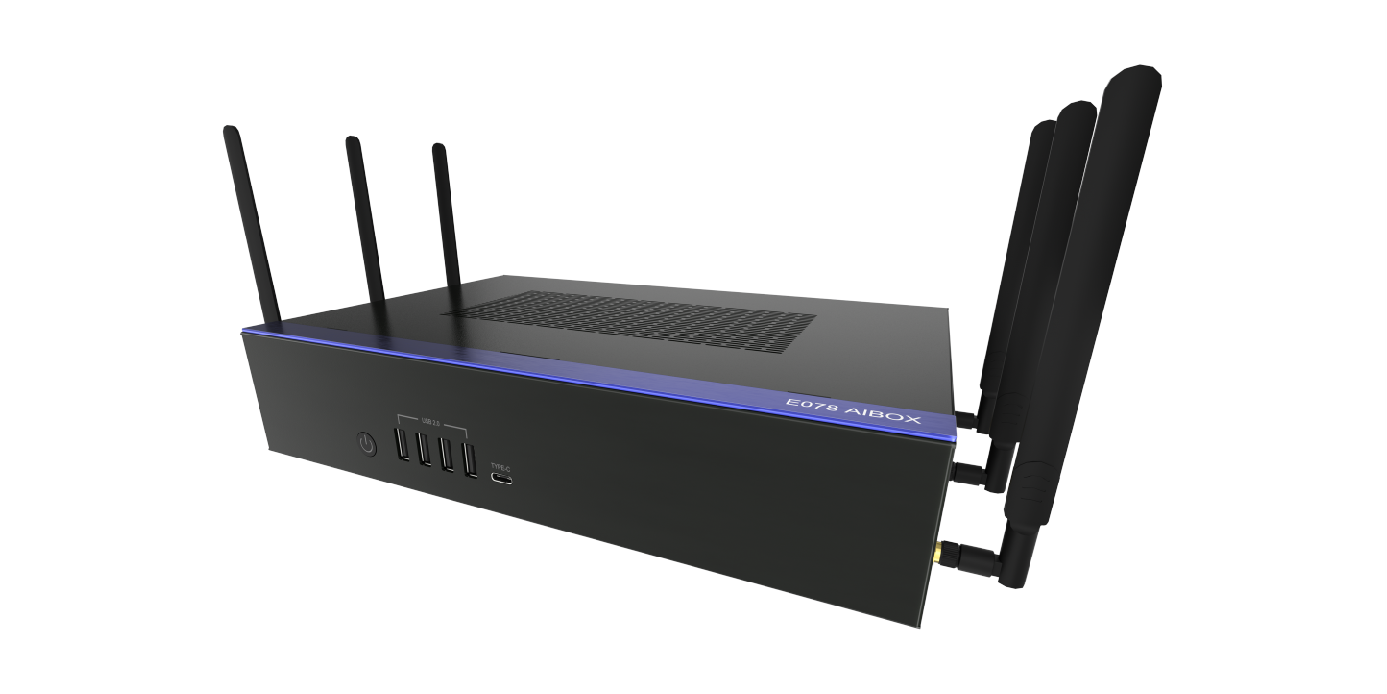

Nvidia GeForce边缘终端

采用Intel Tiger Lake平台，Nvidia GeForce加速卡，具备丰富的扩展接口，广泛应用于智慧城市、安防、交通、能源、环境治理等行业。

留言咨询业务咨询

规格参数

系统	CPU	Intel®Tiger Lake U CPU，TDP Max 15W
	GPU	NVIDIA Graphics Card
	NPU	Non-Support
	Memory	2 x SODIMM DDR4 3200Mhz，Up to 64GB
扩展	Interface	1 x M.2 (KEY M 2280) for SSD/NVME SSD 1 x M.2 (KEY M 2280) for SATA SSD
显卡	Graphics Processor	Intel®UHD Graphics
显卡	Interface	HDMI2.0 Out，Max resolution up to 4096x2160@60Hz HDMI1.4 IN，Max resolution up to 4096x2160@30Hz DP1.2(TYPE-C），Max resolution up to 4096x2160@60Hz
存储	Storage Device	M.2 SSD
GNSS	GNSS	Non-support
音频	Audio Codec	ALC897
音频	Interface	1 x 3.5mm Line Out，1 x 3.5mm Mic In
网络	Ethernet	1 x Intel GbE LAN 1 x Intel 2.5Gbps LAN
网络	WIFI	1 x M.2 2230 with PCIe and USB2.0 for WIFI/BT Module
I/O 接口	LED	1 x Power LED
	USB	4 x USB2.0 TYPE-A，2 x USB3.0 TYPE-A，1 x TYPE-C（USB3.0）
	Serial	Non-support
	Others	1 x 12 Pole Phoenix GPIO
电源	Power Input	19V DC-In
电源	Power Interface	4Pin DC JACK
其它	OS Supports	Linux/Windows10/Windows11
	Watchdog	Support
	TCM/TPM	Onboard TPM2.0 IC
	Antenna	2 x WIFI Ant，4 x 4G/5G Ant
物理参数	Dimensions	264mm(L)×172mm(W)×55mm(H)
物理参数	Mounting	Desk/Wall-mounting
环境	Operating Temp.	0~40℃
	Humidity	10%~90% Humidity, non-condensing
	Storage Temp.	-20~70℃
	Humidity	5%~95% Humidity, non-condensing
